New Baker Horizontal Band Resaw, Model ABX Single Horizontal Band Resaw

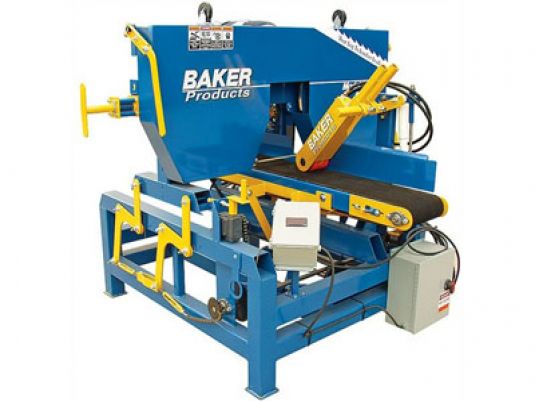

New Baker Model ABX Single Horizontal Band Resaw 12”x12” capacity with 12” wide conveyor. With a 30HP TEFC motor dual voltage 3 phase with NEMA 12 Enclosure with starter & overload protection. Pre-wired 480 volts. Space Saver Uses same frame & headrig as the “B” model But the conveyor belt is the “A” series give compact size. Hydraulic feedworks variable feed speed 0 " 95 FPM. Hydraulics Has 10-gallon reservoir, flow control valve for variable feed speed, Filter, start/stop valve. Head adjusts up & down for thickness Capacity, fixed conveyor height. Weight 2000 lbs. 7 ft. x 7 ft. footprint. Uses 14’2” x 1” x 0.035” hardback or 1-1/4” sawblades. See photo of New Baker ABX Horizontal Band Resaw On our web site. Inventory No. M-113. For brochure click on View PDF View PDF
Additional information contact: Kathy Monks MACHINERY SALES CO., INC. USA Toll Free line: 866-292-6222 Or direct line: 360-379-6675 Fax: 360-379-6794 Email: kathy@machinerysales.com
