Mereen Johnson Gang Ripsaw, "312-DC" Gang Ripsaw
One Used Mereen Johnson "312-DC" Gang Ripsaw 12" Cap. arbor & 6" throat; thickness 1/8" - 3-1/2" using 12" or 14" dia. tooling; 2-3/16" dia. arbor; min. length 22". Serial MJ-4229. 50 HP - 3,600 RPM TEFC Direct drive motor wired 460 volts, electrical lockout on access door, arbor hand brake, and motor load meter. 3 HP Feed motor, 30 - 150 FPM feed speed, shear pin drive pulley. 5" Pitch double-V chains with extruded aluminum slats & replaceable steel backed rubber inserts, and automatic oil mist lubrication system. (4) 3" Dia. air loaded overhead idle press rolls, (1) full width overhead spring loaded bed plate, thickness adjustment with scale & pointer. Physical dimensions: 81” x 72” x 70” 5,000 lbs. See photos of on our web site. Inventory No. MC-191.
Additional information contact: Kathy Monks MACHINERY SALES CO., INC. Cell: 206-601-0458 Or direct line: 360-379-6675 USA Toll Free line: 866-292-6222 Email: kathy@machinerysales.com

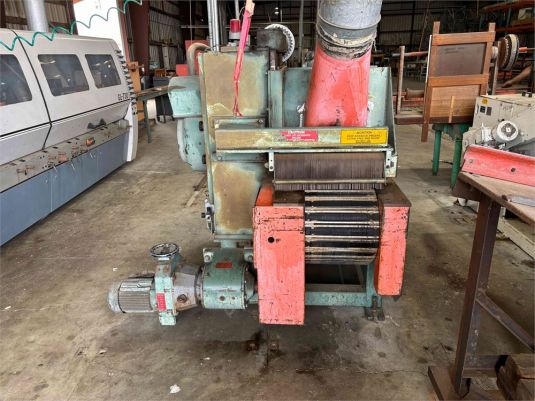

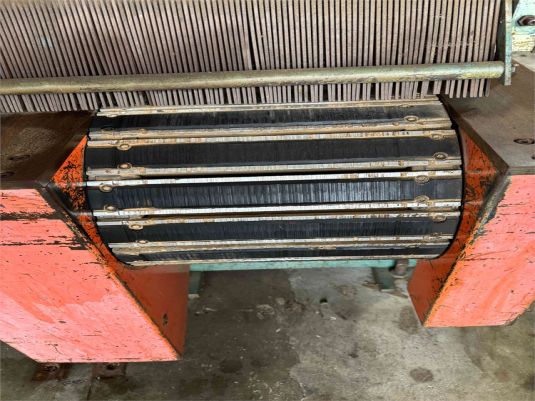

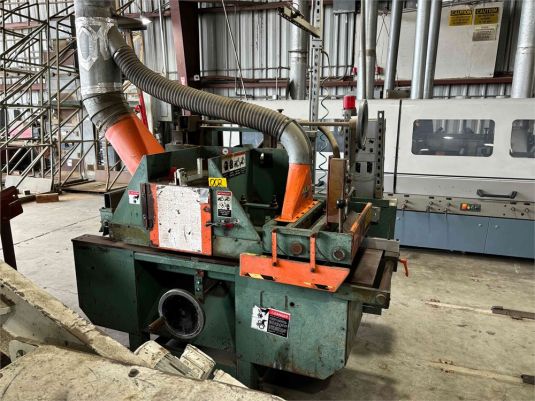

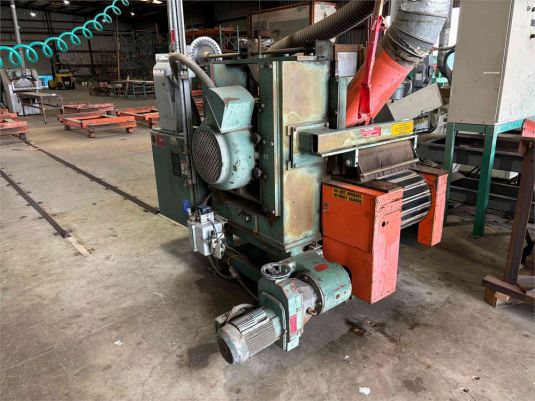

Click thumbnails below to view larger image:
